Instrument cell cable
For connecting electrodes to a potentiostat
- Perfect one-on-one replacement for your old cell cable
- Robust cable of 1 meter length
- Terminates in easy-to-use banana plugs
You'll usually get an answer to your quotation request within one business day.
Description

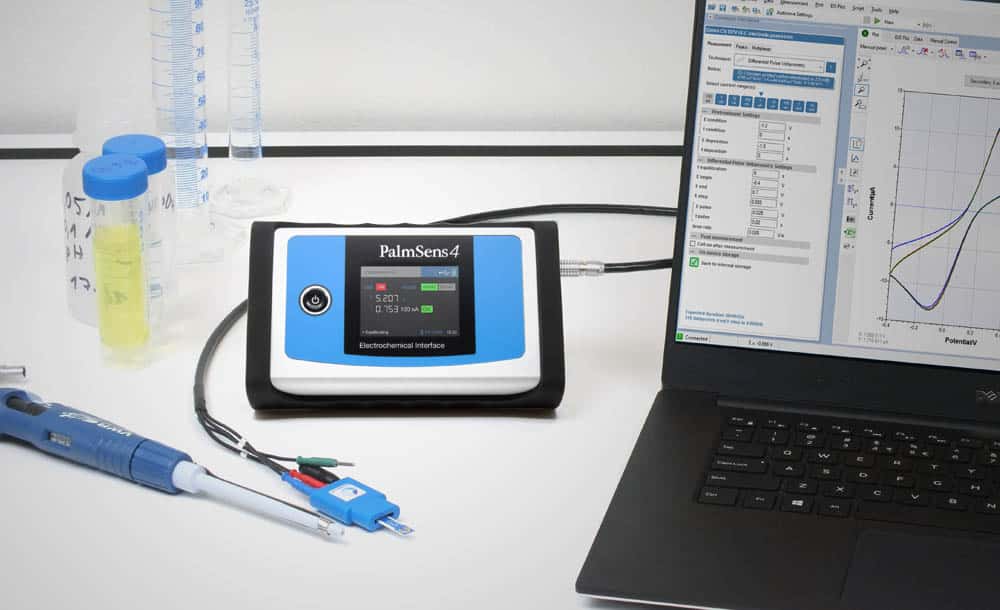

The cell cable connects your electrode to your potentiostat. Most instrument are supplied with a cell cable. It is possible to order an additional cell cable. On one end the cell cable has a specific instrument connector, such as a LEMO or TRIAD connector. A LEMO and TRIAD connector are easy to differentiate, since the TRIAD connector has a screw thread and the LEMO connector are self-latching push-pull.

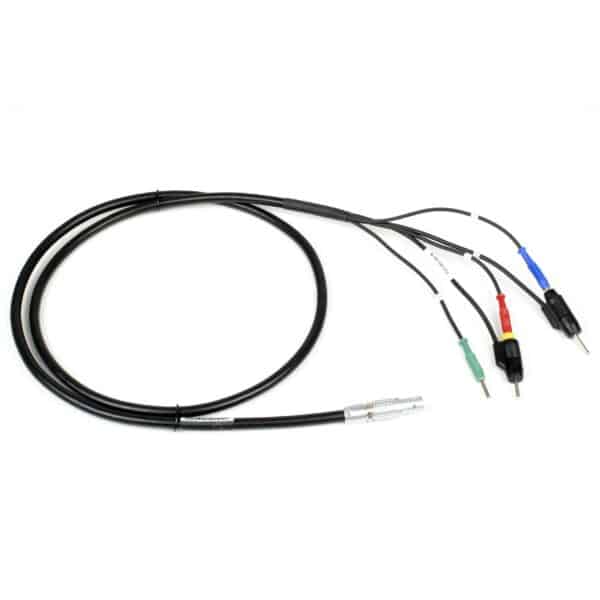

The other end of the cell cable terminates in 2 mm banana plugs. If your PalmSens instrument has a BiPot plug, you will have an extra yellow 2 mm banana plugs: please select BiPot Capabilities: “Yes”. If your instrument can do 100 mA or more, you will have an extra black 2 mm banana plug for the sense lead.
Instrument cable overview
If you select the correct instrument and the BiPot functionality and request a quote, you will receive a quote for the correct cable for your instrument. The selector will use the following logic:

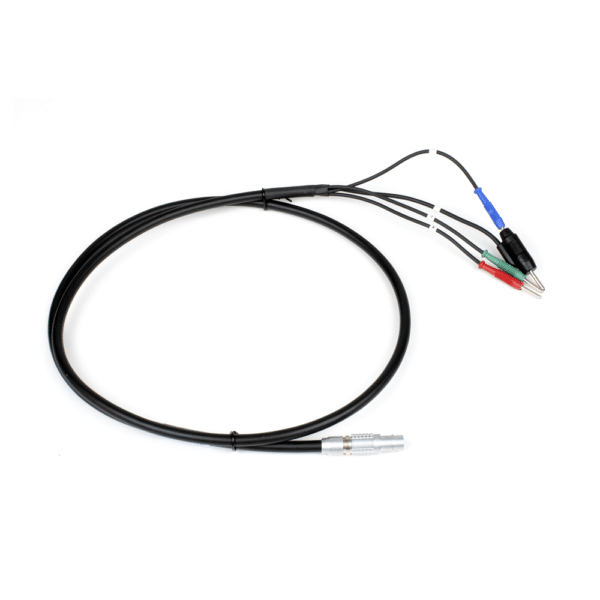

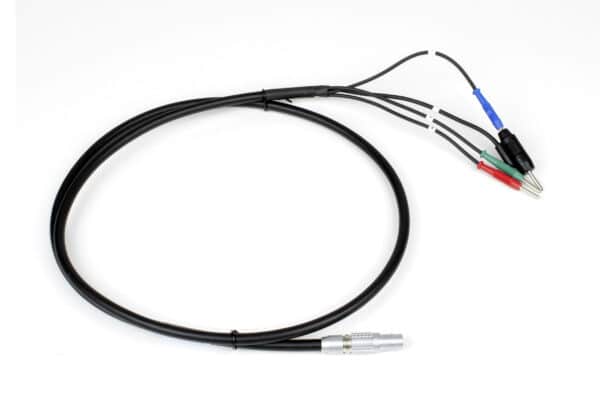

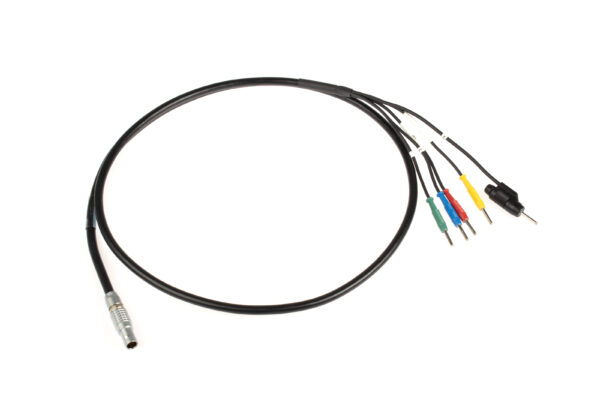

- The EmStat4S LR, EmStat4X LR, EmStat4R LR, MultiEmStat4 LR, EmStat4M LR Development Kit, PalmSens4, MultiPalmSens4, EmStat Pico Development Kit and the Sensit Wearable Development Kit, need a cell cable with a 5-pins LEMO connector and terminates in 2 mm banana plugs: order code CBL-SNS-5L-4 without BiPot functionality and order code CBL-SNS-5L-5BP with BiPot functionality.

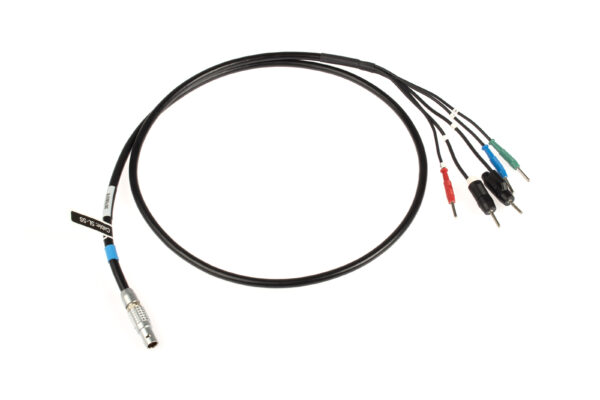

- The EmStat4S HR, EmStat4X HR, EmStat4R HR, EmStat4M HR Development Kit and MultiEmStat4 HR need a cell cable with a 5-pins LEMO connector and terminates in 2 mm banana plugs including Sense lead for use on the 200 mA range: order code CBL-SNS-5L-5S.

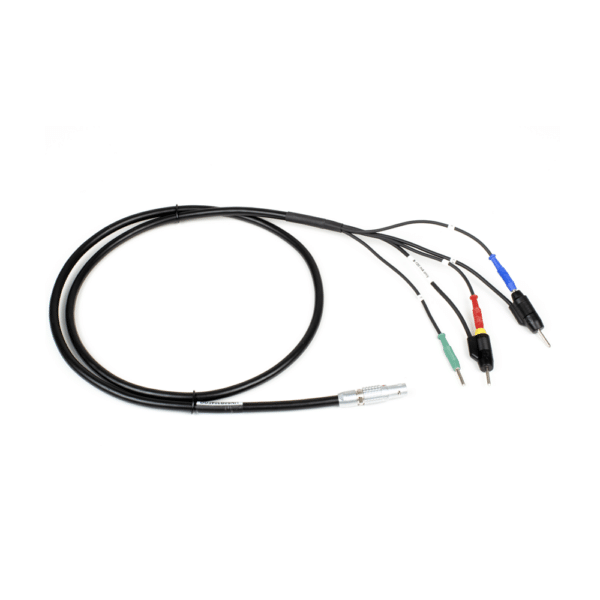

- The EmStat3+ (Blue) and MultiEmStat3+ potentiostat need a cell cable with a 4-pins LEMO connector and terminates in 2 mm banana plugs incl. Sense lead for use on the 100 mA range: order code CBL-SNS-4L-5S.
- The EmStat3 (Blue), MultiEmStat3 and PalmSens3 potentiostat need a cell cable with a 4-pins LEMO connector and terminates in 2 mm banana plugs: order code CBL-SNS-4L-4 without BiPot functionality and order code CLB-SNS-4L-5BP with BiPot functionality.
- The EmStat3 4WE needs two cell cables. One with a 3-pins and one with a 4-pins LEMO connector , both terminating in 2 mm banana plugs: order code CBL-SNS-3L-3 and CBL-SNS-4L-4.

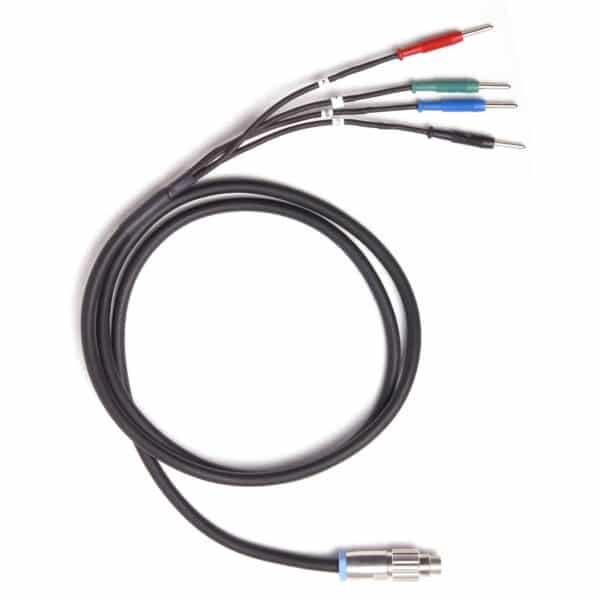

- The EmStat1, EmStat2, PalmSens1 and PalmSens2 potentiostat need a cell cable with a 5-pins TRIAD connector and terminates in 2 mm banana plugs: order code CBL-SNS-5T-4 without BiPot functionality and order code CLB-SNS-5T-5BP with BiPot functionality.
